A graphical application named GatcomSUMO is
proposed to facilitate the realization of VANET simulations
using the SUMO traffic simulator and the OMNeT++ network
simulator, under the Veins framework. The main aim of this
tool is to make easier the steps involved in the setup of VANET

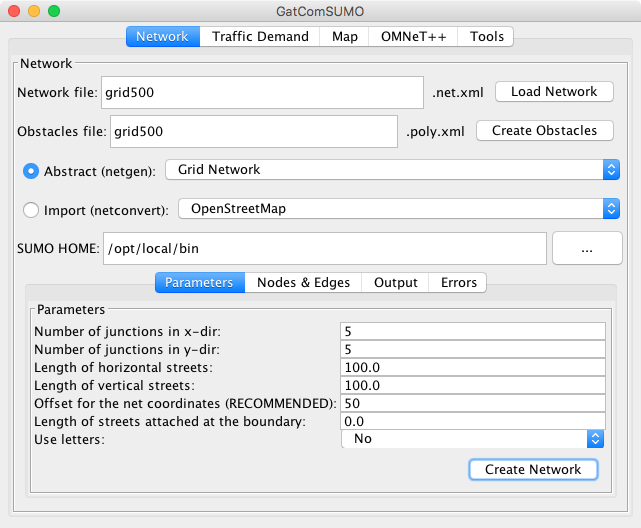

simulations. So, the tasks related to the generation of abstract

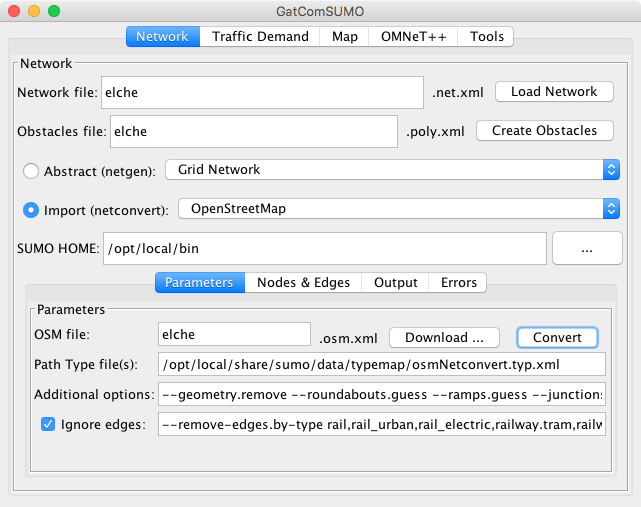

or synthetic scenarios, the download and conversion of network
scenarios based on real maps (e.g. from OpenStreetMap), the

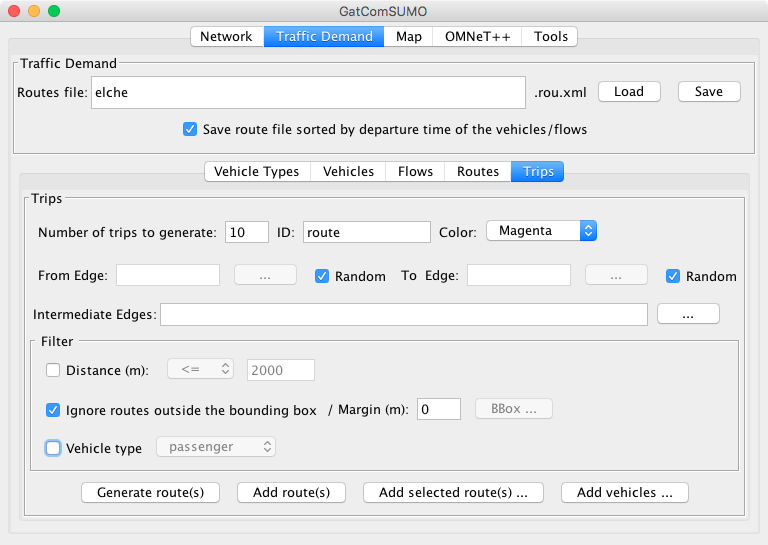

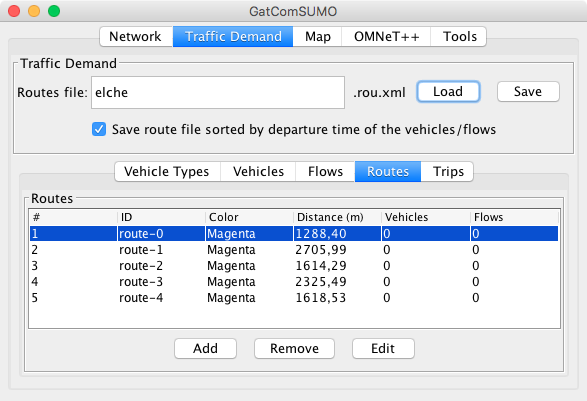

route creation process, and the vehicles mobility modelling are integrated
in a user-friendly graphical interface. This tool performs
the necessary actions by invoking the set of utilities included
in SUMO, saving the user from typing complex command-line
orders.

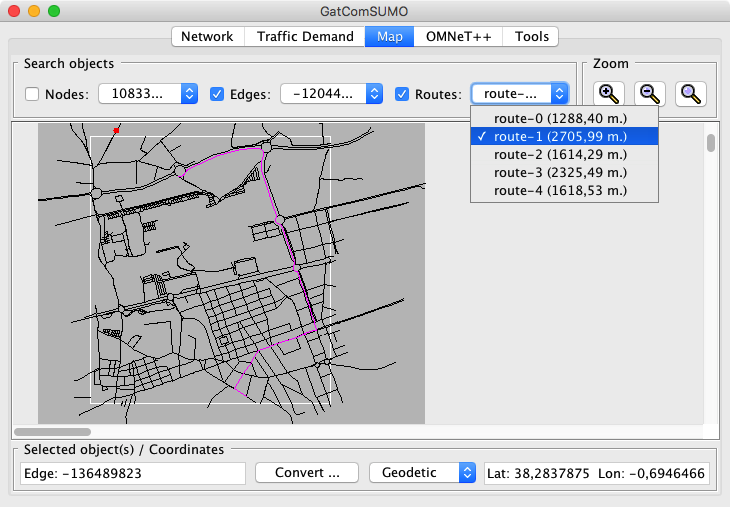

GatcomSUMO visualizes the network and routes easily,
and they are created in such a way to meet the requirements
of the involved simulators, in particular OMNET++, in order
to avoid misunderstandings and runtime errors. In addition, the

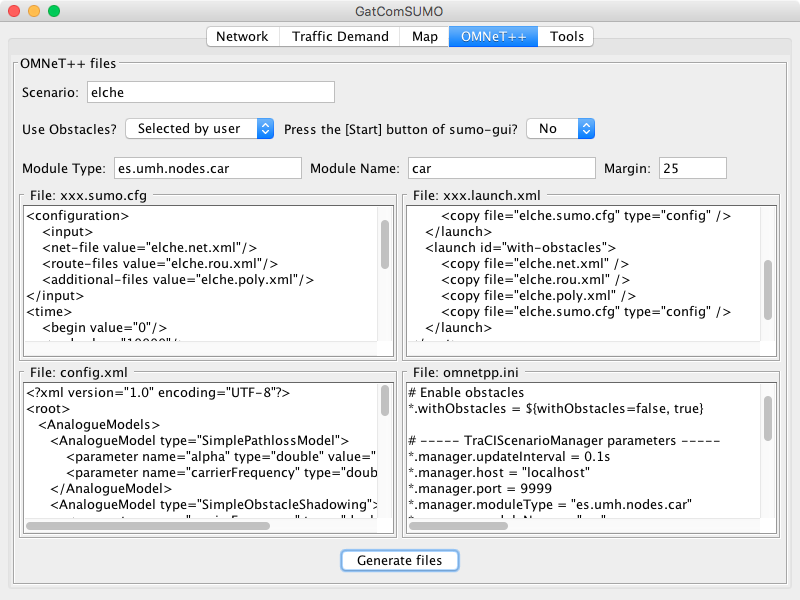

application allows the conversion of the spatial coordinates used
by SUMO into those used by OMNeT++, which is essential to
place fixed elements like RSUs (Road-Side Unit) in the scenarios.

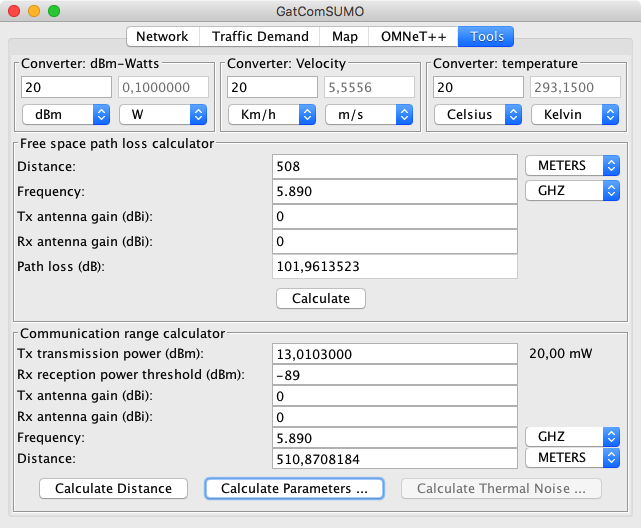

Finally, GatcomSUMO also incorporates a set of useful tools

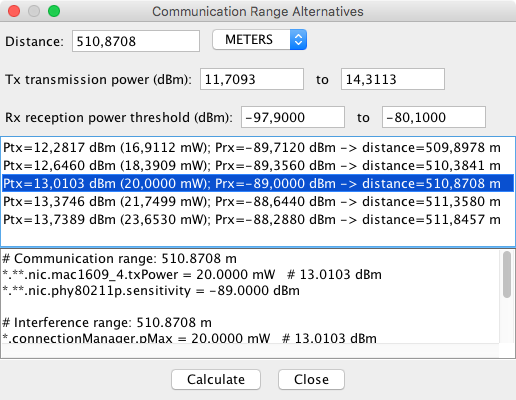

when working with wireless networks, such as the communication
range and signal propagation loss calculators, and several unit
converters (velocity, signal power, temperature) which provide the
corresponding configuration parameters to be imported into the
OMNeT++ simulator. GatcomSUMO is an open-source tool which
is developed in Java, so, it can be run on the most commonly
used platforms.
|--- JAR Archive
Checksums (MD5):
910f48ba88a2bf73e965b2b05f4db406 GatcomSUMO-1.04.jar
You can check the downloaded files with: md5sum <filename>
NOTE: the most recent version and source code can be downloaded from the SourceForge website.
|--- SUMO
|--- OMNeT++
|--- Veins
|--- ExcelsiorJet
Any suggestion will be greatly appreciatted. Thanks for your interest.
Pedro Pablo Garrido Abenza
